JA-20.1 Fixed-Angle Rotor, Aluminum, 32 x 15 mL, 20,000 rpm, 51,500 x g
Product No:342095
JA-20.1 Fixed-Angle Rotor, Aluminum, Biosafety Lid.
Major applications: High-force, large-volume separation of particles with 100 S or larger sedimentation coefficients.
For use in Avanti J Series and J2 Series centrifuges.
$10,979.00 List Price - $10,979.00
Resources + Tools
Product Specifications
| Platform | Avanti |
| Rotor Type | Fixed-Angle (High Performance) |
| Maximum RPM | 20,000 rpm |
| Nominal Capacity | 480 mL |

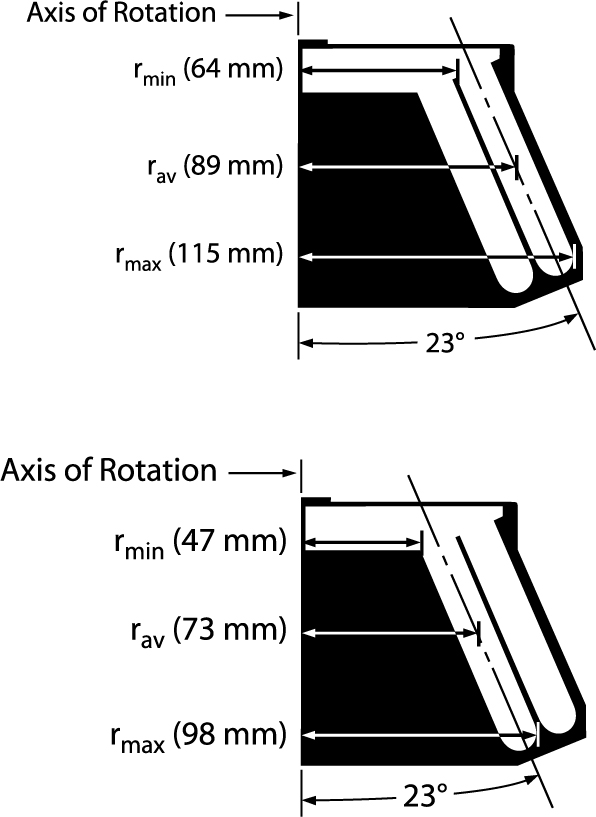

| rMAX | Inner: 98 Outer: 115 |
| rMIN | Inner: 47 Outer: 64 |
| rAV | 89.5 mm (outer row), 72.5 mm (inner row) |
Related Products or Parts
15 mL, Open-Top Thickwall Polycarbonate Open-Top Tube, 18 x 98mm - 100Pk
15 mL, Open-Top Thickwall Polycarbonate Open-Top Tube, 18 x 98mm - 100Pk
15 mL, Open-Top Thickwall Polyethylene Tubes, w/o Caps, 18 x 98 mm - 100Pk
15 mL, Open-Top Thickwall, Polyethylene Tubes, w/o caps, 18 x 98 mm - 100Pk
15 mL, Thickwall Open-Top Tube, 18 x 98 mm (0.71 x 3.86 in)
15 mL, Thickwall Open-Top Tube, 18 x 98 mm (0.71 x 3.86 in)
10 mL, Polycarbonate Bottle with Screw-On Caps, 16 x 80mm - 25Pk
10 mL, Screw-On Cap BOTTLE/CAP, PC 5/8X3 10ML (BOX-25), 16 x 80mm - 25Pk
10 mL, Open-Top Thickwall Polycarbonate Tube, 16 x 76mm - 25Pk
Open-Top Thickwall Polycarbonate Tube For use in Benchtop Centrifuge Rotors: F1010 (Part Number 361221) FX6100 (Part Number 369735)
10 mL, Open-Top Thickwall Polypropylene Tube, 16 x 76mm - 25Pk
10 mL, Open-Top Thickwall Polypropylene Tube, 16 x 76mm - 25Pk
10-ML Polypropylene Tube Adapter, Quantity of One
Adapters for Tubes in Beckman Coulter Rotors for use in High Performance and High Capacity Rotors:
JA-25.15 (part #s 363054, 363050)
JA 20.1 (part # 342095)
JA-20 (part # 334831)
JA-17 (part # 369691)
JS-13.1 (part # 346963)
Required Adapter for Tubes:
10 mL Polycarbonate Bottle with Screw-On Caps (part # 355672)
10 mL Open-Top Thickwall Polypropylene Tube (part # 355640)
10 mL Open-Top Thickwall Polycarbonate Tube (part # 355630)
In JS-13.1, JA-17 and JA-20 Rotors, this tube requires 870329 be used with this adapter.
In JS-13.1, this tube requires 870329 be used with this adapter.
