JA-17 Fixed-Angle Aluminum Rotor, Biosafety- Lid 14 x 50 mL, 17,000 rpm, 39,800 x g
Product No:369691
JA-17 Fixed-Angle Rotor, Aluminum; Major applications: High-force, large-volume. Pelleting bacteria, cell membranes, and subcellular organelles. For use in Avanti J Series and J2 Series centrifuges.
$11,833.00 List Price - $11,833.00
Resources + Tools
Product Specifications
| Platform | Avanti |
| Rotor Type | Fixed-Angle (High Performance) |
| Maximum RPM | 17,000 rpm |
| Max g-Force | 39,800.00 |
| k-Factor | 690 |
| Nominal Capacity | 700 mL |

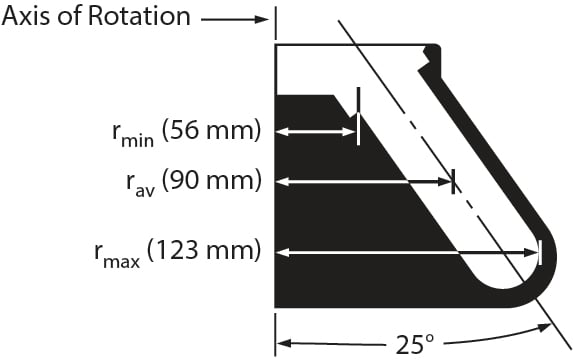

| rMAX | 123 |
| rMIN | 56 |
| rAV | 90 mm |
| BioSafe | Biosafety Lid |
| Materials | Anodized Aluminum |
Related Products or Parts
10 mL, Polycarbonate Bottle with Screw-On Caps, 16 x 80mm - 25Pk
10 mL, Screw-On Cap BOTTLE/CAP, PC 5/8X3 10ML (BOX-25), 16 x 80mm - 25Pk
50 mL, Polypropylene Bottle with Cap Assembly, 29 x 104mm - 6Pk
50 mL, Polypropylene Bottle with Cap Assembly, 29 x 104mm - 6Pk
50 mL, Polycarbonate Bottle with Screw-On Cap, 29 x 104mm - 25Pk
50 mL, BOTTLE/CAP, PC 29X104 50ML (PKG-25, 29 x 104mm - 25Pk
50 mL, Polypropylene Bottle with Screw-On Cap, 29 x 104mm - 25Pk
50 mL, Polypropylene Bottle with Screw-On Cap, 29 x 104mm - 25Pk
50 mL, Polypropylene Tube with Snap-On Cap, 29 x 104mm - 25Pk
50 mL, Polypropylene Tube with Snap-On Cap, 29 x 104mm - 25Pk
50 mL, Open-Top Thickwall Polypropylene Tube, 29 x 104mm - 25Pk
Open-Top Thickwall Polypropylene Tube For use in High Performance and High Capacity Rotors: JA-30.50 Ti
50 mL, Polycarbonate Bottle with Cap Assembly, 29 x 104mm - 24Pk
50 mL, Polycarbonate Bottle with Cap Assembly, 29 x 104mm - 24Pk
50 mL, Polypropylene Bottle with Cap Assembly, 29 x 104mm - 24Pk
50 mL, Polypropylene Bottle with Cap Assembly, 29 x 104mm - 24Pk
50 mL, Open-Top Thickwall Polycarbonate Open-Top Tube, 29 x 104mm - 25Pk
50 mL, Open-Top Thickwall Polycarbonate Open-Top Tube, 29 x 104mm - 25Pk
10-ML Polypropylene Tube Adapter, Quantity of One
Adapters for Tubes in Beckman Coulter Rotors for use in High Performance and High Capacity Rotors:
JA-25.15 (part #s 363054, 363050)
JA 20.1 (part # 342095)
JA-20 (part # 334831)
JA-17 (part # 369691)
JS-13.1 (part # 346963)
Required Adapter for Tubes:
10 mL Polycarbonate Bottle with Screw-On Caps (part # 355672)
10 mL Open-Top Thickwall Polypropylene Tube (part # 355640)
10 mL Open-Top Thickwall Polycarbonate Tube (part # 355630)
In JS-13.1, JA-17 and JA-20 Rotors, this tube requires 870329 be used with this adapter.
In JS-13.1, this tube requires 870329 be used with this adapter.
15 mL Rubber Tube Adapter, 18 mm Diameter, quantity of one
Adapter for Tubes in Beckman Coulter Rotors
Used in High Performance and High Capacity Rotors: JA-20, JA-17, JS-13.1
Benchtop and Microcentrifuge Rotor: F0850
Required Adapter for Tubes:
Part No. 355672: 10 mL Polycarbonate Bottle with Screw-On Caps. In JS-13.1, JA-17, and JA-20 Rotors, this tube requires 342327 to be used together with this adapter.
Part No. 355630: 10 mL Open-Top Thickwall Polycarbonate Tube. In JS-13.1, this tube requires 342327 to be used together with this adapter.
29mm Diameter Tube Snap-on Cap Assembly, Quantity of 25
Adapter for Tubes in Beckman Coulter Rotors used in Benchtop and Microcentrifuge Rotors: TA-14-50
