Type 90 Ti Fixed-Angle Titanium Rotor

Product No:355530

For use in instruments classified: H R S; Major Applications: Five-hour separation of plasmid DNA and rapid differential centrifugation of small particles. Type 90 Ti Rotor Assembly Includes: Part Number Description 839347; 3 O-ring for Rotor Handle 355539. 3 O-ring for Rotor Lid 361668; 2 Overspeed Disk, 90 000 rpm 356959.

DISCOVER THE NEW 3D EXPERIENCE

See the Rotor in 3D



$44,772.00 List Price - $44,772.00

Add to Cart
Add to Quote

Resources + Tools
Technical Documents Tubes & Bottles Rotor Calculator

Product Specifications

Platform Floor Prep
Rotor Type Fixed-Angle (Ultracentrifugation)
Angle 25
Maximum RPM 90,000 rpm
Max g-Force 694,000.00
k-Factor 25
Number of Tubes 8x14 mL / 16x76 mm(8x14 mL / 1x3 in)
Caps and Spacers 839,347.00|355,539.00|361,668.00|356,959.00
Nominal Capacity 108 mL

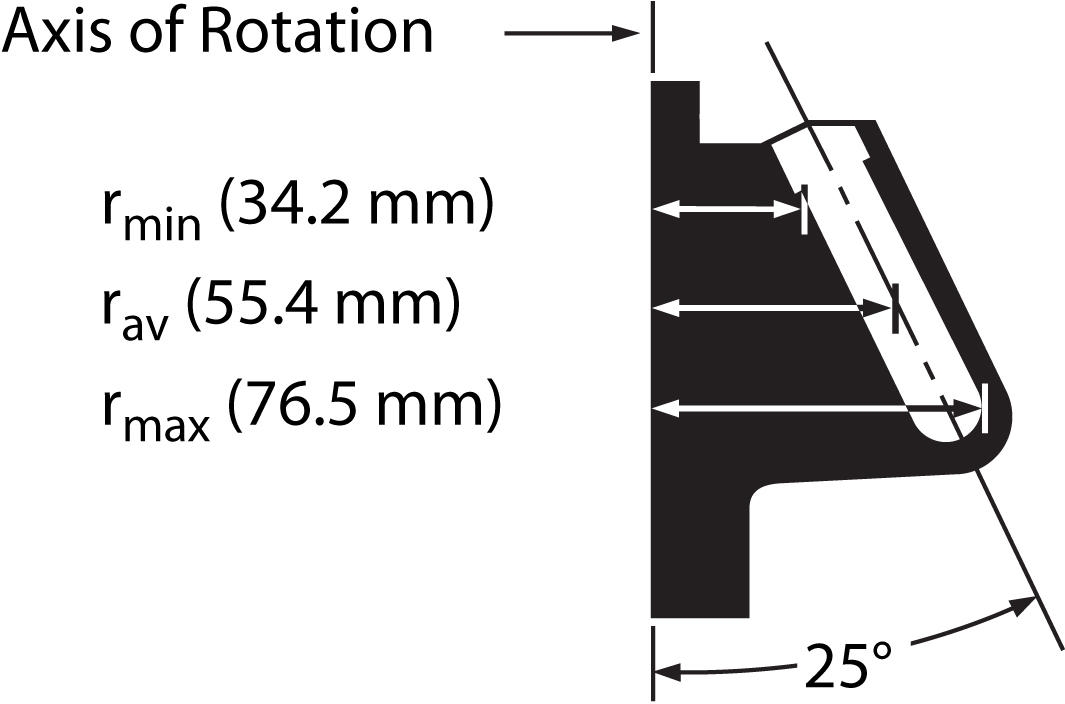

rMAX 76.5
rMIN 34.2
rAV 55.4 mm
BioSafe Bio-Enhanced
Materials Titanium
Package Quantity 1
